Dimensions

LOA: 18,28 m

Beam: 5,20 m

Minimum Draft: 2,25 m

Flag of Registry: Turkey

Engines

Total Power: 150 HP

Engine Brand: Yanmar

Engine Type: Inboard

Engine/Fuel Type: Diesel

Engine Hours: 465 h

Construction

Vacuum infused hull. Solid laminate in keel area. Barrier coat used to guard against osmosis.

Glued hull counter-mould

Infused deck and counter-mould

L-shaped cast iron keel

Twin rudders with self-aligning roller bearings and stainless steel lines

Sails

Standard mainsail (furling) 72 m2 / 775 sq ft

Self-tacking jib 59 m2 / 635 sq ft

Mast and rigging

Deck-stepped anodised aluminium in-mast furling mast, fractional rig built by Sparcraft®

2 levels of swept back spreaders

Anodised aluminium furling boom

Facnor® genoa furler with furling line lead aft to coaming winch

Rigid vang Sparcraft®

Standing rigging made of discontinuous Dyform stainless steel cables

Running rigging: halyards and sheets in Dyneema, additional lines and sheets in polyester

Sailing features

Harken® self-tacking jib track

Mainsheet attached to bridle

Spinlock® line clutches

Harken® turning blocks

2 Harken® rewind electric 46.2 STA winches on coamings

2 Harken® manual 70.2 STA winches

Deck

Walk around decks

Split rigging: inboard shrouds for an easier access

Bowsprit

Open bow pulpit

Double stainless steel lifelines

Lifelines gates

Anchor windlass 2 000 W

Double windlass control and counter

Anchor locker with drain

Mooring cleats (8)

Flush deck hatches (11)

Lateral coachroof windows

Opening ports integrated behind fixed windows (6)

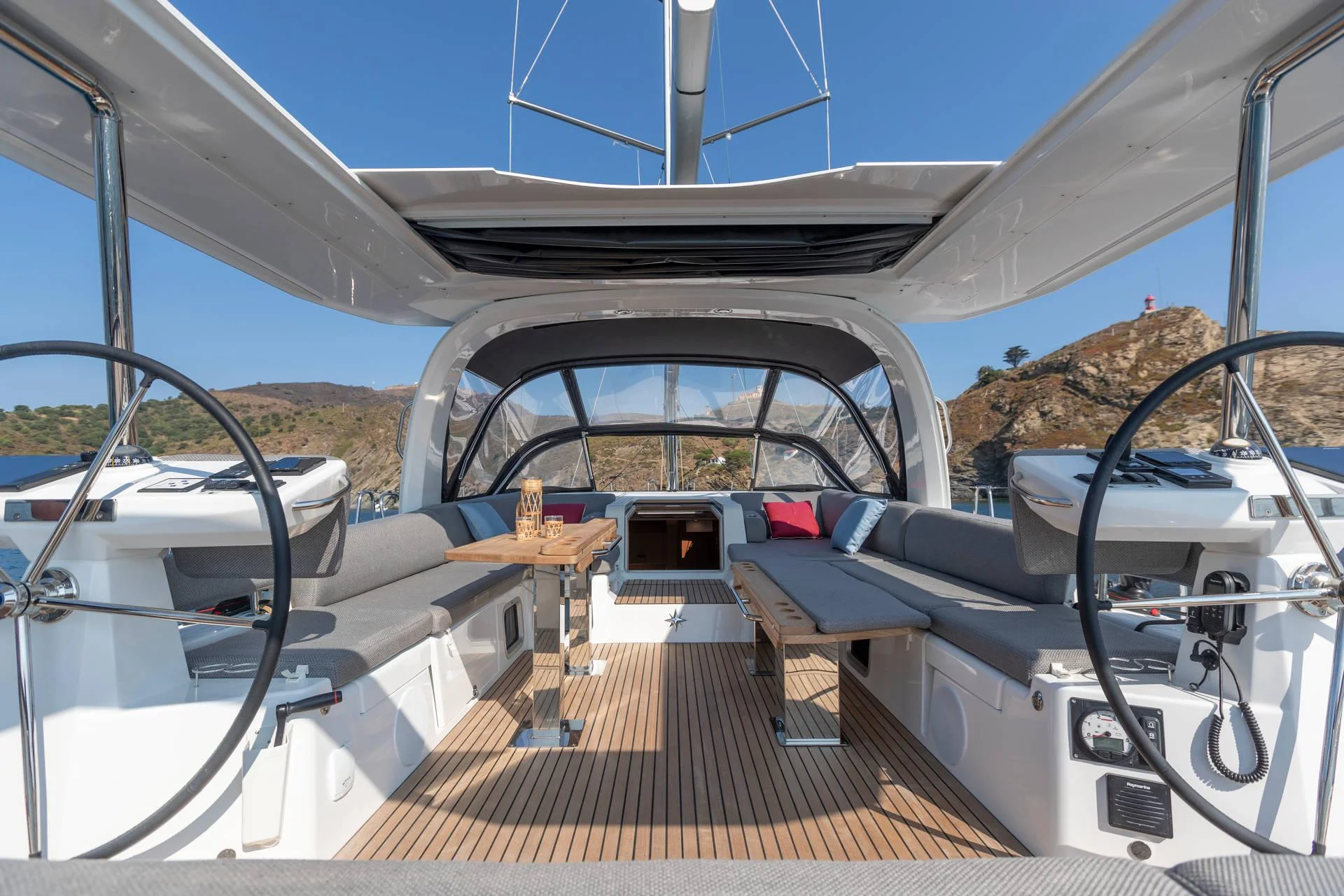

Cockpit

Lounge chair on both sides of the companionway

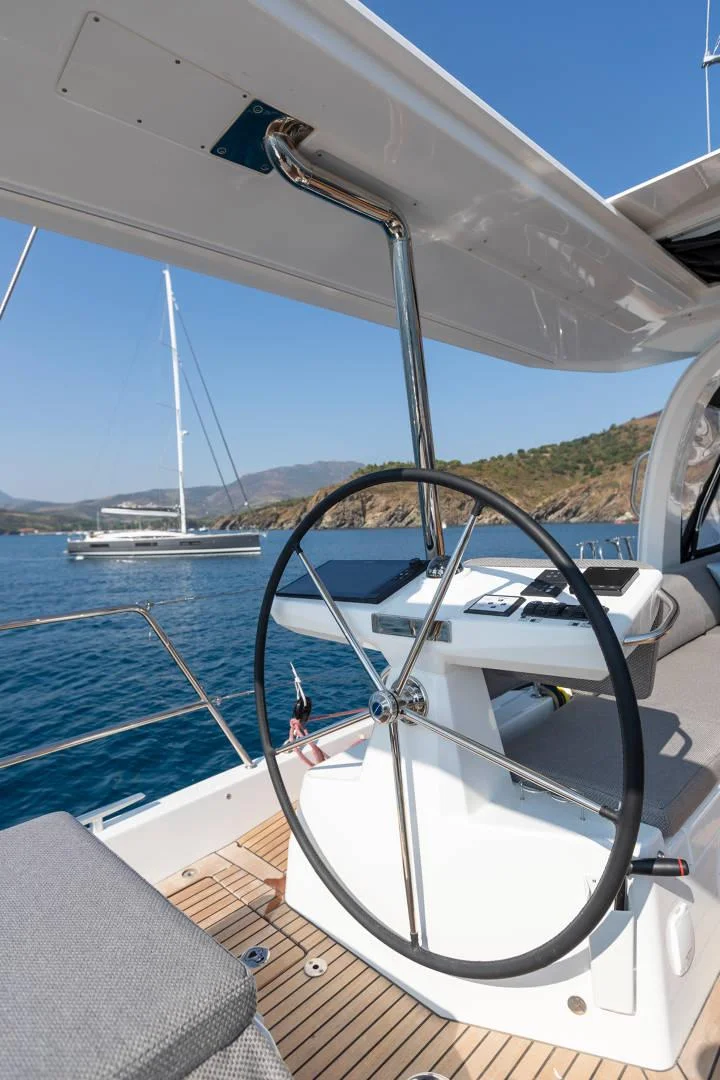

Double leather-covered stainless steel steering wheels

2 backstay chainplates

Cockpit lockers (5 including the liferaft locker)

Large Teak aft fold-down swim platform

Access to the longitudinal garage

Stainless steel handrail

Starboard cockpit table with fixed legs

Portside cockpit table with fixed legs

Large liferaft locker L 90 x H 55 x l 38 cm (2’11’’ x 1’9’’ x 1’2’’)

6-person liferaft locker L 79 x H 49 x l 33 cm (2,7’’ x 1’7’’ x 1’0’’)

Gas locker (2 bottles)

Teak inlay on bench seats, steps, cockpit floor and transom platform

220 V shore power socket

USB plugs, at the steering wheels

Drop-down companionway hatch

Indirect cockpit lighting

Water intake in the cockpit

Sail locker forward

Access through lockable deck hatch

Access ladder

Storage

Access to bow thruster and technical areas

LED lighting

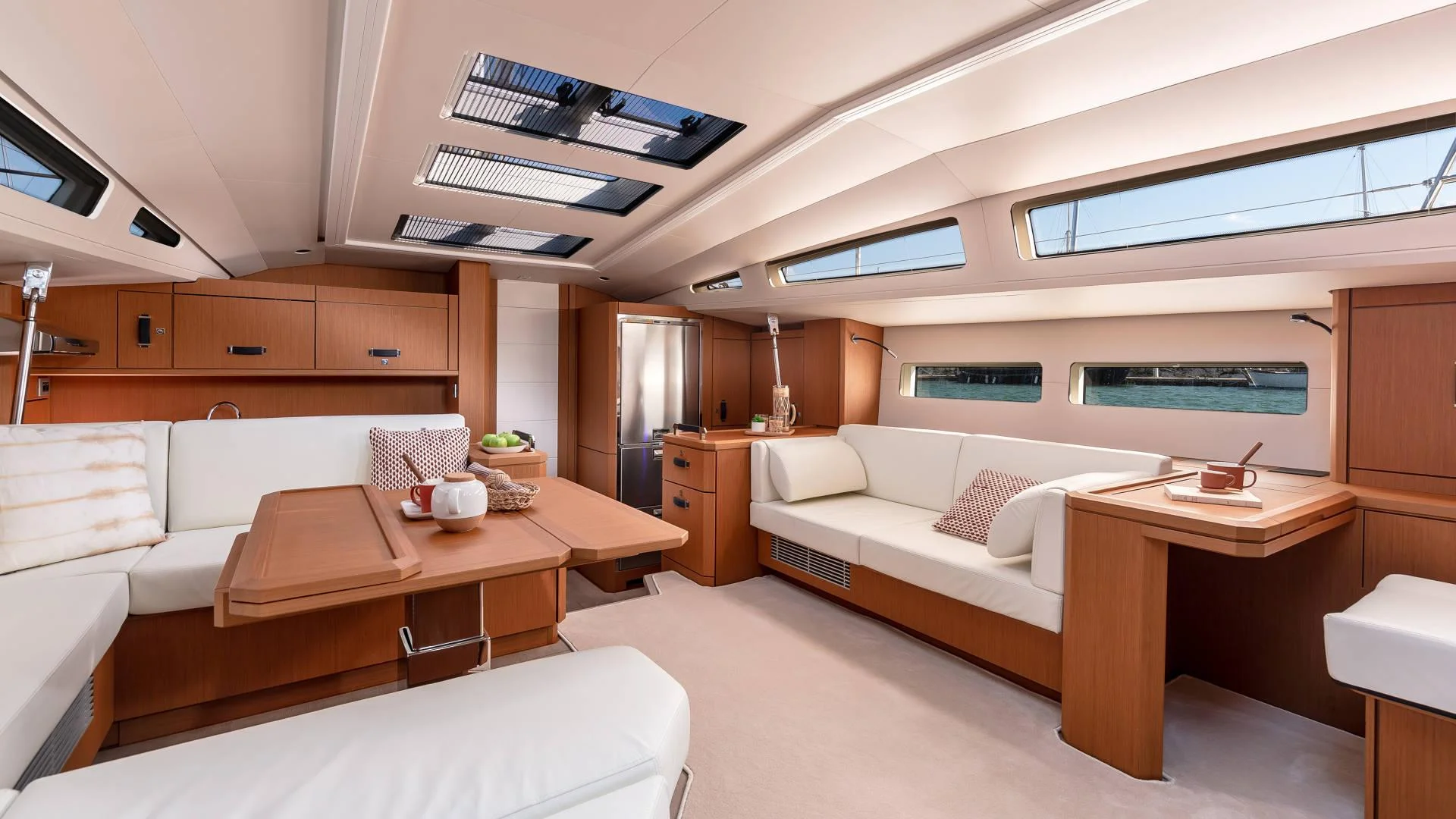

Saloon

U-shaped seating area on port side (7 guests)

Customisable space on starboard

Saloon table with fixed leg

Access to the electrical panel on port side

Fixed hull port (12)

Flush opening hatches (4)

Indirect lighting saloon

Luxury shades hull portholes

Galley

Galley on the width of the boat, at the front of the saloon

Double stainless steel sink

Chrome-plated mixing tap

Waste bin 20 L / 5 US gal (2)

3-burner stove cooker and oven with grill function

75 L / 38 US gal combination fridge / freezer on portside

144 L / 20 US gal combination fridge/ freezer on starboard

Microwave oven

Exhaust fan vented to exterior

Corian worktop

Opening hatch for ventilation

Wine storage locker under floorboards

Chart table

Ergonomic and seaworthy seat

Chart table with top opening storage

Upper storage compartment

LED reading light on flexible tube

AC and USB plugs

Electric

Main electric panel backlit

Switches for domestic systems

USB plug

LCD displays: DC Voltage level, amperage consumption meter, fuel and water gauges, Navicolor screen 3.5’’

IBS sensor with battery status indicator

Induction phone charging station

House AGM battery bank 24 V (8 x 140 Ah / 12 V)

Engine AGM battery 12 V (1 x 50 Ah/ 12 V)

Engine AGM battery 12 V (1 x 50 Ah/ 12 V)

Battery charger 24 V (100 Ah)

Engine alternator 12 V / 125 Ah, 24 V / 60 Ah (110 Ah opt. for 150 HP engine )

Battery switches: in compartment to starboard of the companionway

AC 230 V plugs in saloon, galley and each cabin

Dimmable LED lightings

SEANAPPS connected technology: allows you to monitor the condition of the boat and receive alerts and maintenance recommendations via the associated mobile application. Depending on the boat’s configuration, SEANAPPS collects safety indicators (GPS position, battery status, bilge level, engine status), navigation data (distance travelled, speed, depth), and comfort information (tank levels, cabin temperature and humidity).

Engine

Soundproof engine room

Installation on hull counter-mould

Fixed 3-blade propeller

Roto-moulded exhaust box and stainless steel exhaust fitting on hull

Extractor fan located in engine room

Ventilation ducting vents on transom

Roto-moulded fuel tank 318 L / 84 US gal

Fuel / water separator

Fuel gauge at electrical panel

Tunnel bow thruster

Plumbing

Fresh water system with high-pressure (36 L / min / 9,5 US gal / min), inline filter and accumulator tank

2 rotomouled tank 380 L / 101 US gali.e. 760 L / 201 US gal

Tank gauge integrated into display panel

Tank manifold with selector valves

60 L / 16 US gal hot water heater

Hot and cold cockpit shower

Raw and waste waters

Collector system at each head compartment

Electric marine toilet - fresh water

Roto moulded holding tank

64 L / 17 US gal located in each head compartment

Heavy duty white PCV hosing

Bilge drainage

Manual bilge pump

Manual bilge pump located in the cockpit

Electric bilge pump located in the sump

Electric bilge pump located in forward sail locker
